Water-proof Test Chamber

Home/IP Test Chambers/Water-proof Test Chamber
Water-proof Test Chamber 2017-04-12T04:25:12+00:00

Project Description

Water-proof Test Chamber is to test products’ outershell performance……

Description

Water-proof Test Chamber is to test products’ outershell performance in artificial raining,such as the outershell of external lighting,signal devices,automotive lighting.Water-proof Test Chamber conforms to IEC60529 and includes the following test grades: IPX1, IPX2, IPX3, IPX4, IPX5, IPX6.The whole waterproof test chamber includes drip tester(JYDL Series) for IPX1 and IPX2 test,swing pipe tester(JYBL Series)for IPX3 and IPX4 test,water jet test device(JYJL Series)for IPX5 and IPX6 test.

Application

  • Auto parts
  • Electronic parts
  • LED lights
  • Home appliance
  • Motorcycle autoparts
  • Aerospace

Detailed pictures

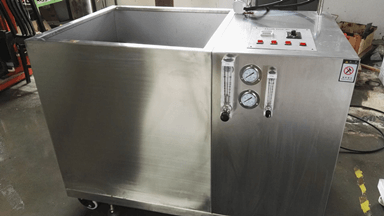

details

  • Spraying water,automatic water supply
  • IPX1, IPX2, IPX3, IPX4, IPX5, IPX6 tests can be performed
  • With safety protection device
  • Conforms to IEC60529 standard

Drip tester specification

Model

JYBL

Inner Size(D*W*H)mm

800*1000

Performance

Drop Height

200~2000mm(Adjustable)

Rainfall

3~5mm/ min

Drip Aperture

Ф0.4mm

Test Bench

500*400(mm)

Test Bench Angle

Horizontal center facing both sides to 45 degrees

Operation Control System

Lift Mode

Rail vertical up and down

Water Pressure Control

Flowmeter

Water Supply

Booster Pump

Safety Protection

Leakage,short-circuit,motor overheating protection

Swing pipe tester specification

Model

JYBL-375

JYBL-600

JYBL-1000

Swing Pipe Radius(mm)

R375

R600

R1000

Pendulum Swing Tube Range

± 45° ± 60° ± 90° ± 180°

Water Hole Diameter

Ф0.4mm

Pendulum Swing Angle Range

0~180°(Adjustable)

Test Bench Diameter

Ф600mm auxiliary test bench Ф400mm

Test Bench Rotation Speed

1r/min(Optional for speed regulation without joint )

Spray Water Pressure

80~100Kpa

Controller

Imported FM converter

Water Pressure Control

Flowmeter

Water Supply

Storage water tank,booster pump

Standard Configuration

Pieces of sprinkler head and nozzle

Safety Protection

Leakage,short-circuit,motor overheating protection

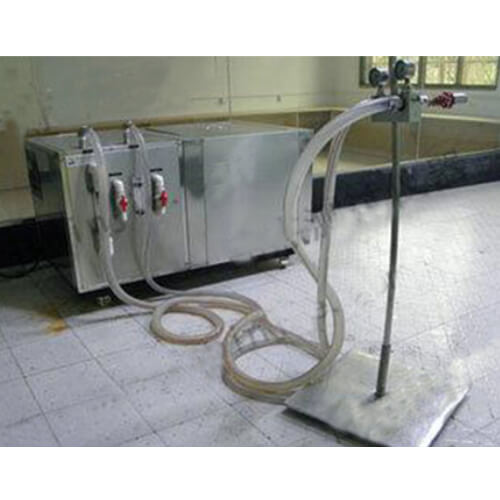

Water jet test device specification

Model

JYJL

Internal Dimension

800*800*800

Nozzle Diameter

Ф6.3mm(IPX5)  Ф12.5mm(IPX6)

Water Speed

 12.5±0.625L/min for IPX5 and 100±5 L/min for IPX6

Water Pressure Control

Flow-meter

Water Supply

Storage water tank,booster pump

Experiment Time

3 min

Main Flow Center

Distance from spray nozzle to enclosure surface is 2.5~3m

Standard

IEC60529
