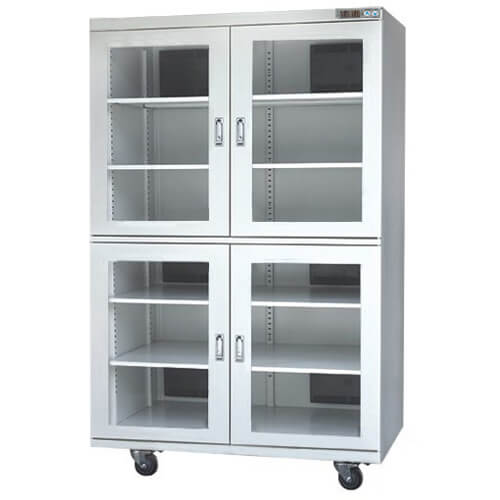

1%~10%RH Dry Cabinet is mainly used for storing electronic components,and CE certified.

Description

1%~10%RH Dry Cabinet is mainly used for storing materials which are sensitive to humidity,such as IC, BGA,SMT, copper, silver, silver plating components,optical and electronic components,chemicals, printed circuit boards, optical film and lens, LED,PCB board, crystal, SCR and other sophisticated electronic devices.

Dry cabinet capacities ranging from 98liters to 1436 liters.

Reference humidity for various articles storage

Humidity RH% Stored Items
55%~45%RH Tape, CD, camera,lens,microscope, video machine, telescope, photographs, negative, slide, miniature sheet, tapes, ancient book album, oil painting, stamps, coins, antique, CDS, LD, engineering drawing, leather goods, industrial design
45%~35%RH Precision instruments, electronic appliance, measuring tools, precision grinding tool, half guide slide, capacitors, tungsten, EI, batteries, optical coating namely components, crystal, light source, printed circuit board, detector, charger, precision bearing, optical lens
35%~20%RH Various reagent, samples, filter, standard products, seeds, pollen, dry flower and spices, tea product, coffee, dessert, fluorescent powder, general PCB board,wafer, short time deposit of the original device of electron
20%~10%RH Electronic components,chemicals,LED,PCB board, crystal, SCR, and other sophisticated electronic devices
10%~1%RH IC, BGA,SMT, copper, silver, silver plating components

Detailed pictures

control panel

Control panel

Castors

Castors

door lock

Door lock

  • Chamber adopts High grade 1mm and 1.2mm cold rolled steel plate, reinforced structure design,excellent load-bearing and sealing performance.
  • LED Digital display panels, using US import Honeywell humidity sensor; temperature and humidity independent display. Humidity can be set and has a memory function, power failure no longer set.
  • Surface treatment with Dupont orange line baking varnish which is strong corrosion resistance to avoid the stored goods from pollution,static shock, and oxidation..
  • 3.2mm high intensity toughened glass.
  • Zinc alloy lock with air tightness,with anti-theft function.
  • Install ESD casters with brakes for easy move and ESD stand.
  • Power supply: AC power 85V~265V 50/60Hz;
  • With two types black surface (anti-static type) or White surface(nonanti-static type)
Model Capacity



 Inner Size

(MM)

 Outer Size

(MM)

 Packing Size

(MM)

 G.W

(KG)

 Average power

(W)

 Shelves Anti-ESD

(Y/N)
JYDC98 98L 448*400*688 446*372*598 540*480*760 32 18 1PCS N
JYDC98F 98L 448*400*688 446*372*598 540*480*760 32 20 1PCS Y
JYDC160 160L 446*422*848 448*450*1010 540*540*1215 47.5 20 3PCS N
JYDC160F 160L 446*422*848 448*450*1010 540*540*1215 47.5 20 3PCS Y
JYDC240 240L 596*372*1148 598*400*1310 690*490*1500 63 20 3PCS N
JYDC240F 240L 596*372*1148 598*400*1310 690*490*1500 63 20 3PCS Y
JYDC320 320L 898*422*848 900*450*1010 990*550*1270 79 40 3PCS N
JYDC320F 320L 898*422*848 900*450*1010 990*550*1270 79 40 3PCS Y
JYDC435 435L 898*572*848 900*600*1010 990*690*1260 95 40 3PCS N
JYDC435F 435L 898*572*848 900*600*1010 990*690*1260 95 40 3PCS Y
JYDC540 540L 596*682*1298 598*710*1465 690*800*1710 100 60 3PCS N
JYDC540F 540L 596*682*1298 598*710*1465 690*800*1710 100 60 3PCS Y
JYDC718 718L 596*682*1723 598*710*1910 690*800*2200 128 60 5PCS N
JYDC718F 718L 596*682*1723 598*710*1910 690*800*2200 128 60 5PCS Y
JYDC870 870L 898*572*1698 900*600*1890 1000*700*2200 160 80 5PCS N
JYDC870F 870L 898*572*1698 900*600*1890 1000*700*2200 160 80 5PCS Y
JYDC1436-4 1436L 1198*682*1723 1200*710*1910 1300*800*2230 219 120 5PCS N
JYDC1436F-4 1436L 1198*682*1723 1200*710*1910 1300*800*2230 219 120 5PCS Y
JYDC1436-6 1436L 1198*682*1723 1200*710*1910 1300*800*2230 219 120 5PCS N
JYDC1436F-6 1436L 1198*682*1723 1200*710*1910 1300*800*2230 219 120 5PCS Y
