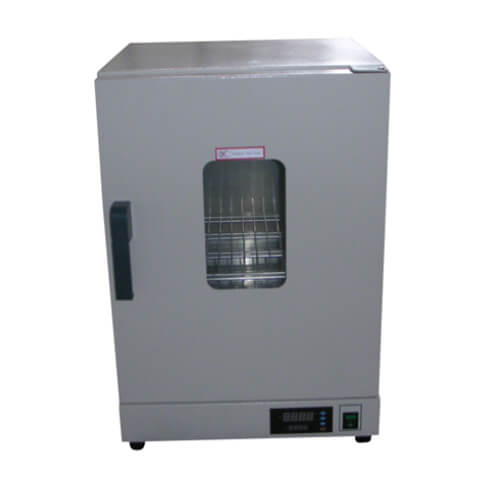

Project Description

300C Vertical Forced Convection Ovens are used for a variety of applications like drying or tempering electronic components,material tests,torrefaction……

Description

300C Vertical Forced Convection Ovens are used for a variety of applications like drying or tempering electronic components,material tests,torrefaction, wax-melting ,high temperature aging ,preheating various materials or specimen and sterilization in industrial and mining enterprises, laboratories and scientific research institutes.

Forced Convection Oven temperature range RT+10 °C ~ +300 °C, capacities ranging from 30 liters to 960 liters.

Optional Accessories

  • 30 Steps Programmable temperature controller
  • Temperature record printer
  • RS485 port and communication
  • The outer shell is made of high-quality steel plate, the surface paint spraying;The working chamber is made of anti-corrosion stainless steel 304.
  • Intelligent temperature controller is based on microprocessor with PID parameters controlling function.Digital temperature display with the functions of precise temperature control, timing range 0~9999min and over-temperature alarm.
  • Hot air circulation system is composed of Germany import low-noisy air blower and optimal air duct which can ensure even temperature distribution inside the working chamber.
  • The shelves can be equipped more according to customers’ requirements and the space between shelves can be adjusted.

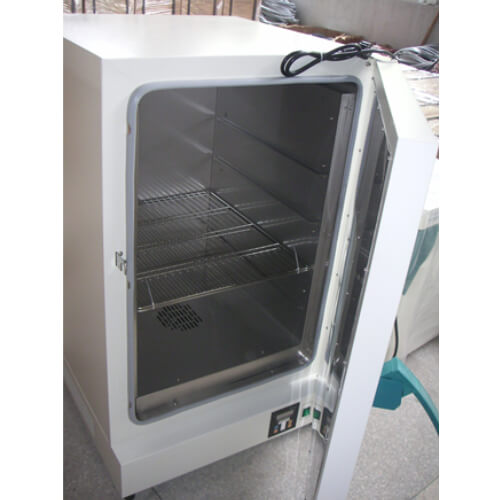

  • Double layer glass door,larger transparent viewing window to see the samples.
  • Forced air convection.The heating power can be adjusted.
  • Available in various technical specifications and capacities.We can customize oven as per customer requirement like size of chamber, temperature range,supply voltage,material of chamber,etc.

Model

JYG-9036A

JYG-9076A

JYG-9146A

JYG-9246A

Consumed Power

950W

1400W

1600W

2600W

Capacity

30L

70L

140L

240L

Internal Size(W*D*H,MM)

300*300*350

400*400*450

450*550*550

500*600*750

Outer Size(W*D*H,MM)

455*485*700

555*565*790

645*695*900

690*755*1105

Packing Size(W*D*H,MM)

610*540*790

745*645*950

855*720*1060

895*765*1265

Gross Weight

47KGS

67KGS

90KGS

125KGS

Model

JYG-9426A

JYG-9626A

JYG-9646A

JYG-9926A

Consumed Power

3500W

5700W

6000W

7000W

Capacity

420L

620L

640L

960L

Internal Size(W*D*H,MM)

600*550*1300

800*600*1300

800*800*1000

1000*600*1600

Outer Size(W*D*H,MM)

820*730*1750

1020*785*1750

940*980*1390

1140*780*1990

Packing Size(W*D*H,MM)

850*885*1985

1115*925*1985

1090*1160*1550

1290*930*2150

Gross Weight

215KGS

257KGS

240KGS

320KGS

Shelves

For JYG-9036A,9076A,9146A,9246A 2 PCS;For JYG-9426A,9626A,9646A 3PCS; For JYG-9926A 4 PCS

Material of Studio

Stainless steel 304

Supply Voltage

For JYG-9036A,9076A,9146A,9246A 220V 50/60HZ;For JYG-9426A,9626A,9646A,9926A 380V 50/60HZ

Temperature  Range

RT+10°C ~ +300°C

Timing Range

0~9999min

Temperature Fluctuation

± 1°C

Temperature Control Precision

 0.1°C

Atmosphere

Forced convection
