Project Description
200C Desktop Forced Convection Ovens are used for a variety of applications like drying or tempering electronic components,material tests……
Description

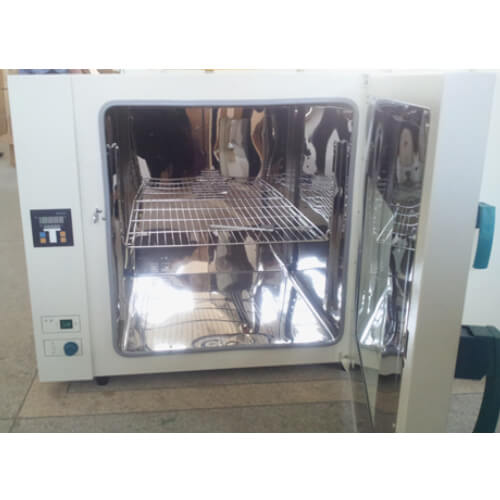

200C Desktop Forced Convection Ovens are used for a variety of applications like drying or tempering electronic components,material tests,torrefaction, wax-melting ,high temperature aging ,preheating various materials or specimen and sterilization in industrial and mining enterprises, laboratories and scientific research institutes.
Forced Convection Oven temperature range RT+10 °C ~ +200 °C, capacities ranging from 20 liters to 200 liters.
Optional Accessories
- 30 Steps Programmable temperature controller
- Temperature record printer
- RS485 port and communication
- The outer shell is made of high-quality steel plate, the surface paint spraying;The working chamber is made of anti-corrosion stainless steel 304.
- Intelligent temperature controller is based on microprocessor with PID parameters controlling function.Digital temperature display with the functions of precise temperature control, timing range 0~9999min and over-temperature alarm.
- Hot air circulation system is composed of Germany import low-noisy air blower and optimal air duct which can ensure even temperature distribution inside the working chamber.
- Double layer glass door,larger transparent viewing window to see the samples.
- Forced air convection.The heating power can be adjusted.
- Available in various technical specifications and capacities.We can customize oven as per customer requirement like size of chamber, temperature range,supply voltage,material of chamber,etc.
Model | JYG-9023A | JYG-9053A | JYG-9123A | JYG-9203A |
Consumed Power | 530W | 800W | 1300W | 1700W |
Capacity | 20L | 50L | 120L | 200L |
Internal Size(W*D*H,MM) | 300*280*280 | 420*350*350 | 550*350*550 | 600*550*645 |
Outer Size(W*D*H,MM) | 586*440*445 | 706*520*520 | 835*540*720 | 885*720*830 |
Packing Size(W*D*H,MM) | 665*585*535 | 785*665*615 | 915*695*885 | 965*885*990 |
Gross Weight | 38KGS | 55KGS | 75KGS | 108KGS |
Shelves | 2 PCS | |||
Material of Studio | Stainless steel 304 | |||
Supply Voltage | 220V 50/60HZ | |||
Temperature Range | RT+10 °C ~ +200 °C | |||
Timing Range | 0~9999min | |||
Temperature Fluctuation | ± 1°C | |||
Temperature Control Precision | 0.1°C | |||
Atmosphere | Forced convection | |||
