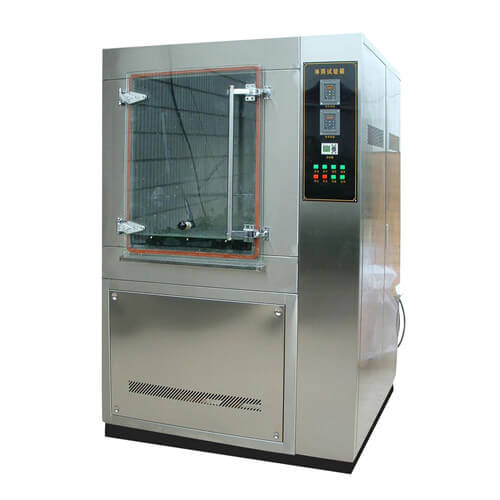

Rain Test Chamber

Home/IP Test Chambers/Rain Test Chamber
Rain Test Chamber 2017-06-09T07:51:31+00:00

Project Description

Rain Test Chamber is suitable for external lighting,signal device and automotive lighting enclosure protection……

Description

Rain Test Chamber is suitable for external lighting,signal device and automotive lighting enclosure protection.This equipment is to test products’ performance against rain penetration or after exposion in the rain for electric product’ outer shells/seals,LED lights,automobile and motorcycle autoparts’ outer shells/seals,etc.Using frequency converter to control the speed,which ensure the test strictly follow international standard.

Application

  • Auto parts
  • Electronic parts
  • LED lights
  • Motorcycle autoparts

Detailed pictures

controller

Controller

Inner

Inner

  • The whole chamber adopts corrosion resistance SUS#304 stainless steel material
  • With large tempered glass observation window.
  • Equipped with appropriate circular turntable(for sample),the speed can be adjusted
  • TEMI880 Programmable LCD controller
  • Spraying water, automatic water supply
  • Conforms to IEC60529 standard
ModelJYLX-500JYLX-1000
Internal Dimension800*800*8001170*1170*1170
Test Bench DiameterФ300mm
Water Hole DiameterФ0.4mm,Ф0.8mm
Spray Hole Spacing50mm
Spray Ring RadiusFor JYLX-500 R200mm; for JYLX-1000 R400mm
Water jet ring diameterФ16mm
Pendulum Swing Tube Range± 60° ± 90° ± 180°
Test Bench Rotation Speed1~17r/min(Adjustable)
Spray Water Pressure80~100Kpa
ControllerTEMI880 Programmable LCD Touch Screen Controller
Water Pressure ControlFlow-meter
Water SupplyStorage water tank,booster pump
Observation WindowLarge visual tempered glass door
