Project Description

20%~60%RH Dry Cabinet is necessary to store material which is sensitive to humidity,CE certified……

Description

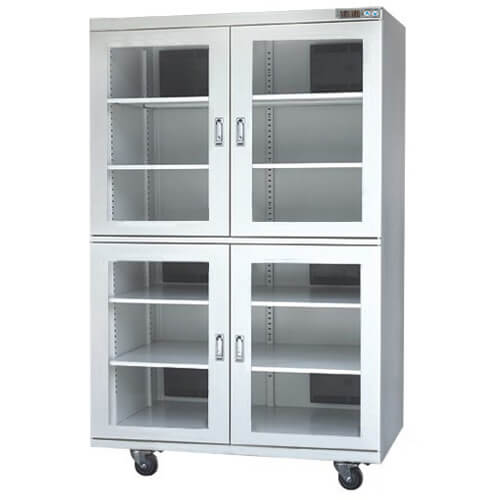

20%~60%RH Dry Cabinet is mainly used for storing materials which are sensitive to humidity,such as camera,lens,CD,stamps,half guild slide,samples,etc.

Dry cabinet capacities ranging from 98liters to 1436 liters.

Reference humidity for various articles storage

Humidity RH%Stored Items
55%~45%RHTape, CD, camera,lens,microscope, video machine, telescope, photographs, negative, slide, miniature sheet, tapes, ancient book album, oil painting, stamps, coins, antique, CDS, LD, engineering drawing, leather goods, industrial design
45%~35%RHPrecision instruments, electronic appliance, measuring tools, precision grinding tool, half guide slide, capacitors, tungsten, EI, batteries, optical coating namely components, crystal, light source, printed circuit board, detector, charger, precision bearing, optical lens
35%~20%RHVarious reagent, samples, filter, standard products, seeds, pollen, dry flower and spices, tea product, coffee, dessert, fluorescent powder, general PCB board,wafer, short time deposit of the original device of electron
20%~10%RHElectronic components,chemicals,LED,PCB board, crystal, SCR, and other sophisticated electronic devices

Detailed pictures

control panel

Control panel

castors

Castors

door lock

Door lock

  • Chamber adopts High grade 1mm and 1.2mm cold rolled steel plate, reinforced structure design,excellent load-bearing and sealing performance.
  • LED Digital display panels, using US import Honeywell humidity sensor; temperature and humidity independent display. Humidity can be set and has a memory function, power failure no longer set.
  • Surface treatment with Dupont orange line baking varnish which is strong corrosion resistance to avoid the stored goods from pollution,static shock, and oxidation..
  • 3.2mm high intensity toughened glass.
  • Zinc alloy lock with air tightness,with anti-theft function.
  • Install ESD casters with brakes for easy move and ESD stand.
  • Power supply: AC power 85V~265V 50/60Hz;
  • With two types black surface (anti-static type) or White surface(nonanti-static type)
ModelCapacity



Inner Size

(MM)

Outer Size

(MM)

Packing Size

(MM)

GW

(KG)

Average Power

(W)

ShelvesAnti-ESD

(Y/N)

JYDA9898L448*400*688446*372*598540*480*76032131PCSN
JYDA98F98L448*400*688446*372*598540*480*76032131PCSY
JYDA160160L446*422*848448*450*1010540*540*121547.5183PCSN
JYDA160F160L446*422*848448*450*1010540*540*121547.5183PCSY
JYDA240240L596*372*1148598*400*1310690*490*150063183PCSN
JYDA240F240L596*372*1148598*400*1310690*490*150063183PCSY
JYDA320320L898*422*848900*450*1010990*550*127079203PCSN
JYDA320F320L898*422*848900*450*1010990*550*127079203PCSY
JYDA435435L898*572*848900*600*1010990*690*126095203PCSN
JYDA435F435L898*572*848900*600*1010990*690*126095203PCSY
JYDA540540L596*682*1298598*710*1465690*800*1710100203PCSN
JYDA540F540L596*682*1298598*710*1465690*800*1710100203PCSY
JYDA718718L596*682*1723598*710*1910690*800*2200128205PCSN
JYDA718F718L596*682*1723598*710*1910690*800*2200128205PCSY
JYDA870870L898*572*1698900*600*18901000*700*2200160405PCSN
JYDA870F870L898*572*1698900*600*18901000*700*2200160405PCSY
JYDA1436-41436L1198*682*17231200*710*19101300*800*2230219405PCSN
JYDA1436F-41436L1198*682*17231200*710*19101300*800*2230219405PCSY
JYDA1436-61436L1198*682*17231200*710*19101300*800*2230219405PCSN
JYDA1436F-61436L1198*682*17231200*710*19101300*800*2230219405PCSY
