Project Description

200C Vertical Forced Convection Ovens are used for a variety of applications like drying or tempering electronic components,material tests……

Description

200C Vertical Forced Convection Ovens are used for a variety of applications like drying or tempering electronic components,material tests,torrefaction, wax-melting ,high temperature aging ,preheating various materials or specimen and sterilization in industrial and mining enterprises, laboratories and scientific research institutes.

Forced Convection Oven temperature range RT+10 °C ~ +200 °C, capacities ranging from 30 liters to 620 liters.

Optional Accessories

  • 30 Steps Programmable temperature controller
  • Temperature record printer
  • RS485 port and communication
  • The outer shell is made of high-quality steel plate, the surface paint spraying;The working chamber is made of anti-corrosion stainless steel 304.
  • Intelligent temperature controller is based on microprocessor with PID parameters controlling function.Digital temperature display with the functions of precise temperature control, timing range 0~9999min and over-temperature alarm.

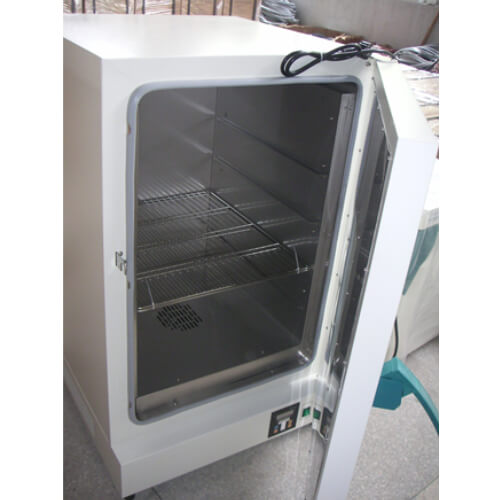

  • Hot air circulation system is composed of Germany import low-noisy air blower and optimal air duct which can ensure even temperature distribution inside the working chamber.
  • The shelves can be equipped more according to customers’ requirements and the space between shelves can be adjusted.

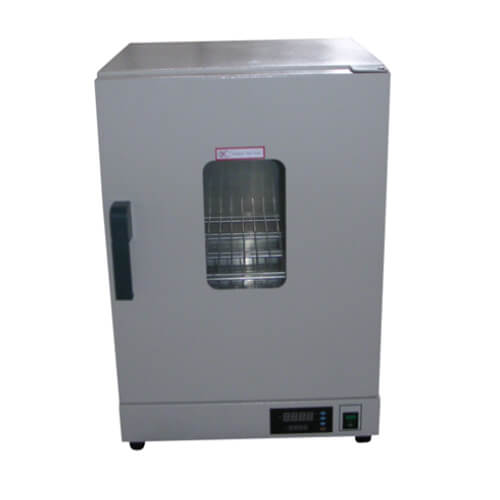

  • Double layer glass door,larger transparent viewing window to see the samples.
  • Forced air convection.The heating power can be adjusted.
  • Available in various technical specifications and capacities.We can customize oven as per customer requirement like size of chamber, temperature range,supply voltage,material of chamber,etc.

Model

JYG-9030A

JYG-9070A

JYG-9140A

Consumed Power

700W

1000W

1600W

Capacity

30L

70L

140L

Internal Size(W*D*H,MM)

300*300*350

400*400*450

450*550*550

Outer Size(W*D*H,MM)

585*480*450

525*550*760

575*695*885

Packing Size(W*D*H,MM)

425*440*620

615*725*935

855*650*1050

Gross Weight

38KGS

54KGS

80KGS

Model

JYG-9240A

JYG-9423A

JYG-9623A

Consumed Power

2200W

2600W

3600W

Capacity

240L

420L

620L

Internal Size(W*D*H,MM)

500*600*750

600*550*1300

800*600*1300

Outer Size(W*D*H,MM)

665*720*1075

780*710*1770

980*760*1740

Packing Size(W*D*H,MM)

880*740*1240

825*840*1985

1040*885*1985

Gross Weight

104KGS

200KGS

245KGS

Shelves

For JYG-9030A,9070A,9140A,9240A 2 PCS;For JYG-9423A,JYG-9623A 3PCS

Material of Studio

Stainless steel 304

Supply Voltage

For JYG-9030A,9070A,9140A,9240A, 220V 50/60HZ;For JYG-9423A,JYG-9623A 380V 50/60HZ

Temperature Range

RT+10 °C ~ +200 °C

Timing Range

0~9999min

Temperature Fluctuation

± 1°C

Temperature Control Precision

0.1°C

Atmosphere

Forced convection
