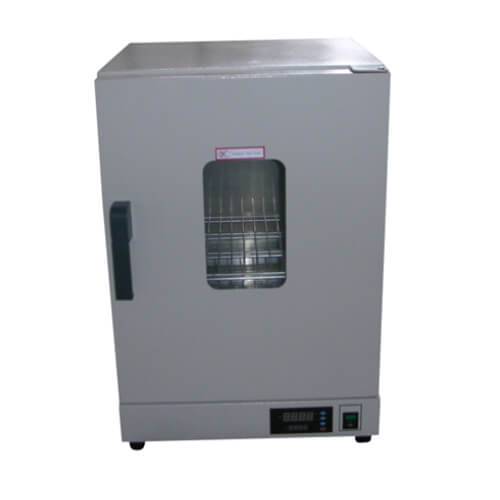

400C Vertical Forced Convection Ovens

Home/High Temperature Ovens/Forced Convection Oven/400C Vertical Forced Convection Ovens
400C Vertical Forced Convection Ovens 2017-04-13T09:58:34+00:00

Project Description

400C Vertical Forced Convection Ovens are used for a variety of applications like drying or tempering electronic components,material tests,torrefaction, wax-melting ,high temperature aging……

Description

400C Vertical Forced Convection Ovens are used for a variety of applications like drying or tempering electronic components,material tests,torrefaction, wax-melting ,high temperature aging ,preheating various materials or specimen and sterilization in industrial and mining enterprises, laboratories and scientific research institutes.

Forced Convection Oven temperature range RT+20 °C ~ +400 °C, capacities ranging from 30 liters to 240 liters.

Optional Accessories

  • 30 Steps Programmable temperature controller
  • Temperature record printer
  • RS485 port and communication



  • The outer shell is made of high-quality steel plate, the surface paint spraying;The working chamber is made of anti-corrosion stainless steel 304.
  • Intelligent temperature controller is based on microprocessor with PID parameters controlling function.Digital temperature display with the functions of precise temperature control, timing range 0~9999min and over-temperature alarm.
  • Hot air circulation system is composed of Germany import low-noisy air blower and optimal air duct which can ensure even temperature distribution inside the working chamber.

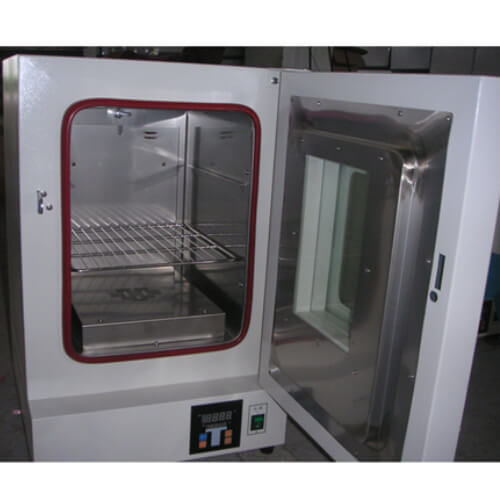

  • Double layer glass door,larger transparent viewing window to see the samples.
  • Forced air convection.The heating power can be adjusted.
  • Available in various technical specifications and capacities.We can customize oven as per customer requirement like size of chamber, temperature range,supply voltage,material of chamber,etc.

Model

JYG-9038A

JYG-9078A

JYG-9108A

JYG-9148A

JYG-9248A

Consumed Power

1200W

1800W

2000W

2400W

3200W

Capacity

30L

70L

100L

140L

240L

Internal Size(mm)

300*300*350

400*400*450

450*450*500

450*550*550

500*600*750

Outer Size(mm)

490*510*800

590*590*890

640*620*945

680*730*995

730*715*1200

Packing Size(mm)

680*550*885

740*655*1055

695*785*1105

895*735*1165

940*780*1360

Gross Weight

50KGS

79KGS

89KGS

108KGS

140KGS

Shelves

 2 PCS

Material of Studio

Stainless steel 304

Supply Voltage

220V 50/60HZ

Temperature  Range

RT+20°C…+400°C

Timing Range

0~9999min

Temperature Fluctuation

±1°C

Temperature control Precision

 0.1°C
