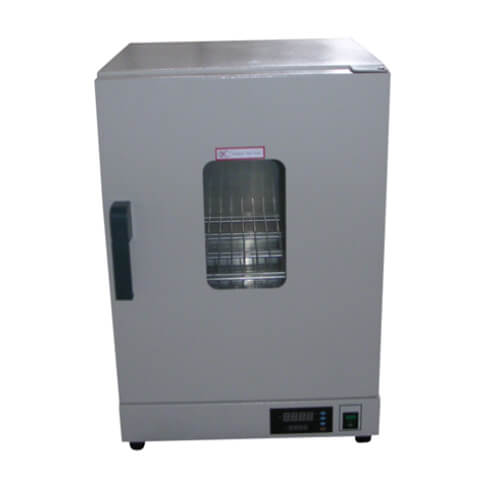

200C Natural Convection Ovens

200C Natural Convection Ovens 2017-04-13T09:58:06+00:00

Project Description

200C Natural Convection Ovens is used for drying or tempering electronic components,CE certified……

Description

200C Natural Convection Ovens are used for a variety of applications like drying or tempering electronic components,material tests,torrefaction, wax-melting ,high temperature aging ,preheating various materials or specimen and sterilization in industrial and mining enterprises, laboratories and scientific research institutes.

200C Natural Convection Oven temperature range RT+10 °C ~ +200 °C, capacities ranging from 15 liters to 240 liters.

Optional Accessories

  • 30 Steps Programmable temperature controller
  • Temperature record printer
  • RS485 port and communication
  • The outer shell is made of high-quality steel plate, the surface paint spraying;The working chamber is made of anti-corrosion stainless steel 304.
  • Intelligent temperature controller is based on microprocessor with PID parameters controlling function.Digital temperature display with the functions of precise temperature control, timing range 0~9999min and over-temperature alarm.
  • The shelves can be equipped more according to customers’ requirements and the space between shelves can be adjusted.
  • Double layer glass door,larger transparent viewing window to see the samples.
  • Vertical natural convection.The heating power can be adjusted.

Model

JYNG-9011A

JYNG-9031A

JYNG-9071A

JYNG-9141A

JYNG-9241A

Consumed Power

350W

450W

750W

1150W

1500W

Capacity

15L

30L

70L

140L

240L

Internal Size(mm)

250*250*250

300*300*350

400*400*450

450*550*550

500*600*750

Outer Size(mm)

355*350*490

425*420*620

522*530*755

572*670*875

622*720*1075

Packing Size(mm)

480*450*580

545*510*720

690*615*915

825*660*1060

865*705*1255

Gross Weight

21KGS

32KGS

61KGS

74KGS

85KGS

Shelves

2 PCS

Material of Studio

Stainless steel 304

Supply Voltage

220V 50/60HZ

Temperature  Range

RT+10 °C…+200 °C

Timing Range

0~9999min

Temperature Fluctuation

±1°C

Temperature control Precision

0.1°C
