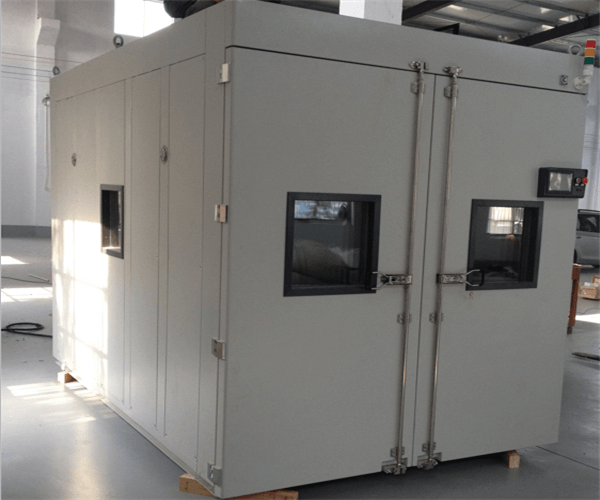

Walk-in High Temperature Aging Test Room

Home/Walk-In Chambers/Walk-In Aging Test Chamber/Walk-in High Temperature Aging Test Room
Walk-in High Temperature Aging Test Room 2017-04-16T06:32:54+00:00

Project Description

Walk-in High Temperature Aging Test Room is a common device used in all kinds of aging tests in electronic, computer,LED…….

Description

Walk-in High Temperature Aging Test Room is a common device used in all kinds of aging tests in electronic, computer,LED,plastic,metal,vehicle,chemical and communication industries.The aging chamber is mainly applicable to large accessories for high temperature aging and constant temperature test.

Corresponding Standard

  • GB/T2423.2-2001
  • GB2423.2-89Nb
  • GB50054-95
  • GB5002S2-95
  • GB50169-92
  • GB50243-2002
  • Microprocessor with PID parameters controlling
  • Dimension can be customized according to customers’ requirement
  • Working chamber SUS#304 stainless steel material
  • Japan RKC or OYO LCD controller
  • Stainless steel electric heater
  • With various of safety protection devices

 Model

JY-GW

Supply Voltage

220/380V 50/60HZ

Temperature Control Range

RT ~ +85 °C

Temperature Fluctuation

≤ ±0.5°C

Temperature control precision

0.1°C

Temp.uniformity

≤ 3°C

Temp.bias

≤ ±3°C

Heating Rate

1.0~3.0°C(Also can according to Customer’s requirements)

Internal Dimension

Subject to customer’s requirements

Outer Dimension

Subject to customer’s requirements

Outer Shell Material

Block type color steel plate,surface electrostatic spraying.

Inner Material

Superior SUS#304 stainless steel material

Insulation Material

Superfine fiberglass wool or polyurethane foam

Heating System

Stainless steel electric heater

Controller

RKC or OYO controller

Standard Accessories

Glass window,Inner light

Protection Device

Over-temperature Protection,leakage protection,fan overload protection,phase sequence protection

Optional Accessories

Temperature recorder,exhaust system,smoke alarm,photoelectric alarm,temperature test hole,movable slope platform
