Project Description

PV Module Environmental Test Chamber for climatic tests according to IEC61215 and IEC61646 norms…….

Description

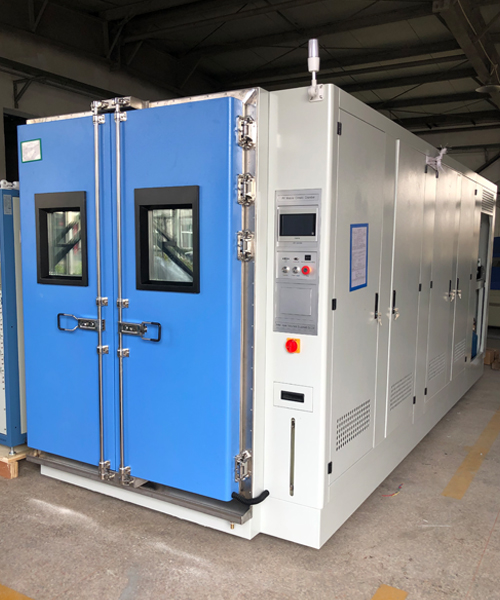

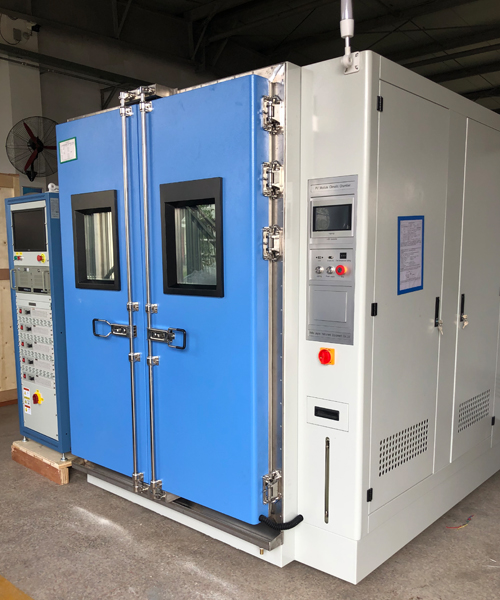

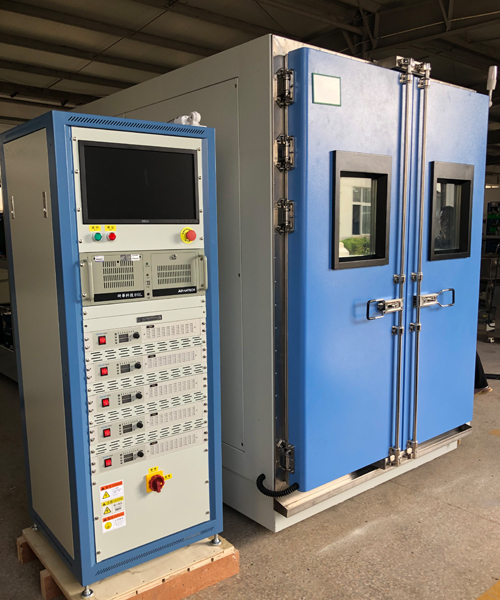

PV Module Environmental Test Chamber for climatic tests according to IEC61215 and IEC61646 norms.Climatic chambers for PV module designed to meet solar panel test specifications for IEC, UL and ASTM for thermal cycling test, damp heat test(85℃ /85% RH for 1000h),humidity and freezing test.It is used to evaluate the quality and determine the reliability and life time of photovoltaic modules.

  • Working chamber corrosion resistance SUS#304 stainless steel material
  • Automatic filling water
  • Cascade refrigeration system,France “Tecumseh” compressor
  • Environment friendly Refrigerant R404A & R23
  • With Cooling tower
  • With various safety protection devices

Corresponding standards

  • IEC61215
  • IEC61646
  • ITC62108

Model

JYPL-3.0

Internal Dimension(MM)

1100(D)*1200(W)*2200(H)

Overall size(MM)

2400(D)*1700(W)*2700(H)

Packing size(MM)

2500(D)*1800(W)*3050(H)

Cooling tower

Diameter 1900mm, height 2300mm

Tower packing size(MM)

2000(W)*2000(D)*2500(H)

Test PV module size

2000(L)*1000(W)MM,thickness 50MM  10pcs

Temperature range

-40℃-120℃

Alternating temp range

-40℃-85℃

Humidity range

20%-98%R·H(40-90℃)

Alternating humidity range

75%-95%R·H(-25℃-85℃)

Temperature fluctuation

≤±0.5℃

Temperature uniformity

≤2.0℃

Temperature bias

≤±2.0℃

Humidity bias

+2 -3%R·H

Heating/cooling rate

1.0-3.4℃/min(loading),(linear adjustable range:-40℃-85℃ )

Time range

0-9999H adjustable

 Cooling tower

50 tons

Voltage

AC 380V 50Hz

Power

55KW  water consumption:

Sample holder

Working chamber adopts SUS#304 stainless steel inside, and 10 grooves to put PV modules with different sizes.
