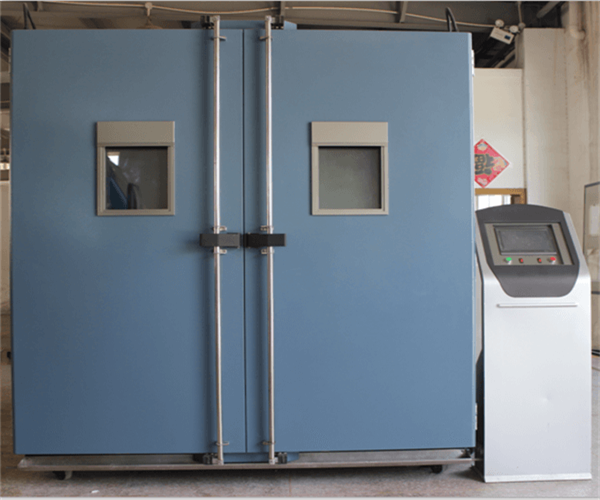

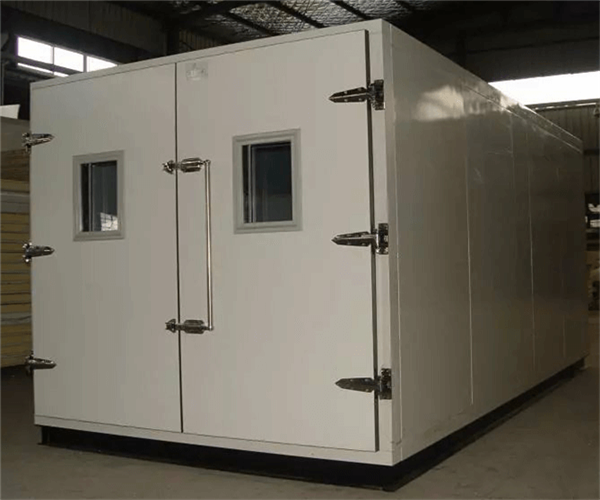

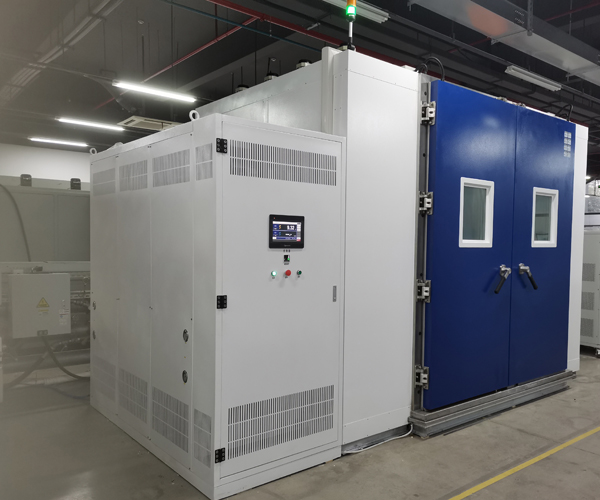

Walk-In High-low Temperature Damp Heat Test Chamber

Home/Walk-In Chambers/Walk-In Temperature Humidity Chamber /Walk-In High-low Temperature Damp Heat Test Chamber
Walk-In High-low Temperature Damp Heat Test Chamber  2017-04-17T03:21:30+00:00

Project Description

Walk-In High-low Temperature Damp Heat Test Chamber is widely suitable for large parts,semi-finished products,finished products,huge equipment undergone high and low temperature test……

Description

Walk-In High-low Temperature Damp Heat Test Chamber has been developed for special applications,it is widely suitable for large parts,semi-finished products,finished products,huge equipment undergone high and low temperature test,constant temperature test,temperature and humidity alternating test.

Walk-in temperature humidity test chamber capacities ranging from 10M3 to 100M3 to accommodate many product sizes. Temperature Range: -40°C to +150°C.Humidity range: 20% to 98% RH.

Walk-in temperature humidity climatic test chambers, usually tailored to suit the specific customer’s requirements,such as customized room size,temperature range,heating rate,cooling rate.It is in piece assembling structure,which enables on site installation and commissioning.

Application

  • Electric devices
  • Automobile
  • Telecommunication systems
  • Refrigerators
  • Aerospace industry
  • Computers
  • Packagings
  • PV industry

Corresponding Standard

  • GB2423.1-89, GB2423.2-89,
  • GB/T2423.3-93, GB/T2423.4-93,
  • GB/2423.22-87Nb, GB2423.34-86, GB/150.9-86
  •  IEC60068-2-1.1990
  •  IEC60068-2-2.1974

Detailed pictures

TEMI 880 LCD controller

TEMI 880 LCD controller

Germany Bitzer Compressor

Germany Bitzer Compressor

temperature humidity sensor

Temperature-humidity-sensor

Safety device

Safety device

  • Dimension can be customized according to customers’ requirement
  • Working chamber corrosion resistance SUS#304 stainless steel material
  • Input mode PT100 Temperature sensor
  • TEMI 800 Programmable LCD controller,program with 99 groups,999 cycles
  • Low noise Germany “GEA” semi-closed compressors
  • Environment friendly Refrigerant R404A & R23
  • Steam humidifying,automatic water circulation loop,with functions of automatic filling water
  • Air circulation for uniform airflow within the inner chamber.low noise fans
  • The system of heating up, heating down,dehumidifying, and humidifying can be operated independently
  • 100mm diameter cable port comes standard on the left side of the chamber
  • With larger transparent viewing window and lighting inside to observe the test
  • The system-wide multi-security protection and power-cut memory
  • With RS232/485 computer interface and software
  • USB and LAN interface(Option)
  • Remote control and remote monitoring possible via LAN(Option)
  • With various of safety protection devices

Model

JYGDWS-10B

Consumed Power

 54KW
TypeMicroprocessor with PID parameters controlling

Supply Voltage

380V 50/60HZ

Timing Range

0~9999min

Temperature control range

-40 °C…+150 °C

Temperature Fluctuation

≤±0.5°C

Temperature control Precision

0.1°C(32.18 °F)

Humidity range

20%~98% R.H

Temp.uniformity

≤±2°C

Effective Capacity

10000 Litres

Internal Dimension

W2300*D2000*H2300MM

Outer Dimension

W2500*D3900*H2700MM

Packing Size

W665*D585*H535MM

Heating rate

0.7~1.5°C/min(no-load)

Cooling rate

0.7~1.5°C/min(no-load)

Refrigerant

R404A/R23

Controller

TEMI-880Programmable Touch Screen Temperature and Humidity Controller and RS232/485 interface

Refrigeration system

Adopts two units low noise original Germany “GEA” semi-closed compressors
