Project Description

Walk-In Constant Temperature Humidity Test Chamber is widely suitable for large parts,semi-finished products,finished products testing at constant temperature humidity conditions……

Description

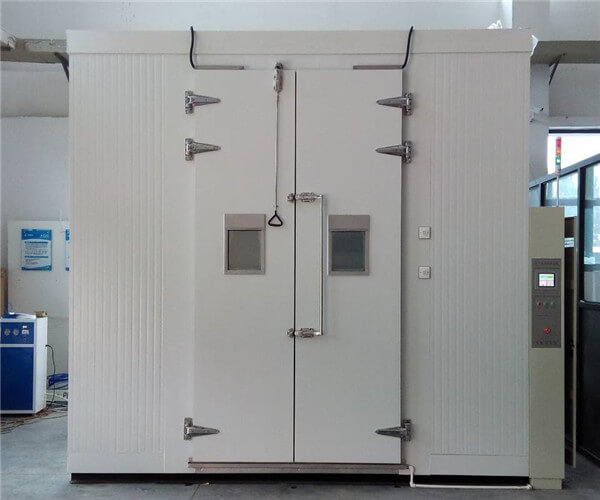

Walk-In Constant Temperature Humidity Test Chamber has been developed for special applications,it is widely suitable for large parts,semi-finished products,finished products,huge equipment undergone high and low temperature test,constant temperature test,temperature and humidity alternating test.

Walk-in environmental chambercapacities ranging from 10M3 to 100M3 to accommodate many product sizes. Temperature Range: 0°C to +100°C.Humidity range: 20% to 98% RH.

Walk-in temperature humidity environmental test chambers, usually tailored to suit the specific customer’s requirements,such as customized room size,temperature range,heating rate,cooling rate.It is in piece assembling structure,which enables on site installation and commissioning.

Application

  • Electric devices.
  • Automobile
  • Telecommunication systems
  • Refrigerators
  • Aerospace industry
  • Computers
  • Packagings
  • PV industry

Corresponding Standard

  • GB2423.1-89,GB2423.2-89Nb
  • GJB150.3-86,GJB150.4-86
  • GJB1032-90,MIL-STD-2164/(EC)
  •  IEC60068-2-1.1990
  •  IEC60068-2-2.1974

Detailed pictures

TEMI880 LCD controller

TEMI880 LCD controller

Germany Bitzer Compressor

Germany Bitzer Compressor

temperature humidity sensor

Temperature humidity sensor

Safety device

Safety device

  • Dimension can be customized according to customers’ requirement
  • Working chamber corrosion resistance SUS#304 stainless steel material
  • Input mode PT100 Temperature sensor
  • TEMI 2700 Programmable LCD controller
  • Low noise Germany “Bitzer” semi-closed compressors
  • Environment friendly Refrigerant R22 & R134A
  • Steam humidifying,automatic water circulation loop,with functions of automatic filling water
  • Air circulation for uniform airflow within the inner chamber.low noise fans
  • The system of heating up, heating down,dehumidifying, and humidifying can be operated independently
  • 100mm diameter cable port comes standard on the left side of the chamber
  • With larger transparent viewing window and lighting inside to observe the test
  • The system-wide multi-security protection and power-cut memory
  • USB and LAN interface
  • Remote control and remote monitoring possible via LAN

Model

JYHS-35B

Consumed Power

40KW

Type

Microprocessor with PID parameters controlling

Supply Voltage

380V 50/60HZ

Timing Range

0~9999min

Temperature control range

0 °C…+100 °C

Temperature Fluctuation

≤±1°C

Temperature control Precision

0.1°C(32.18 °F)

Humidity range

20%~98% R.H

Temp.uniformity

≤±2°C

Effective Capacity

35000 Litres

Internal Dimension

W2300*D5700*H2700MM

Outer Dimension

W3800*D7900*H3700MM

Heating rate

0.7~1.5°C/min(no-load)

Cooling rate

1.0°C/min

Refrigerant

R22/R134A

Controller

TEMP2700 Programmable Touch Screen Temperature and Humidity Controller and RS232/485 interface

Refrigeration system

Adopts low noise original Germany “BITZER” semi-closed compressors
