Project Description

Vacuum ovens are used for drying of material,CE certified……

Description

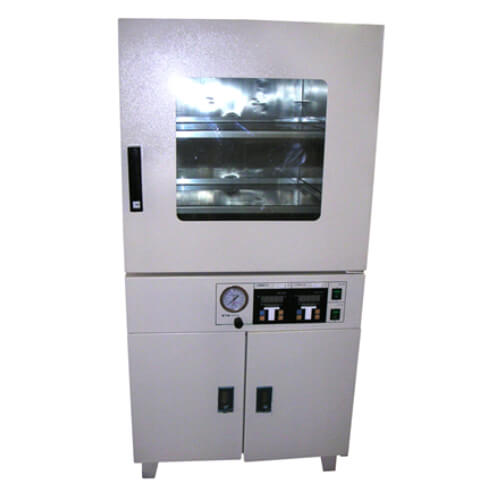

Vacuum ovens are used for a variety of applications like drying heat treatment of materials under vacuum conditions in industrial and mining enterprises, laboratories,medical colleges and scientific research institutes.Vacuum oven is specially designed for drying of material which is thermo-sensitive or decompounds and oxidative easily.It can be filled with inert gases to the inner chamber,which is especially for a rapid drying of some compound material. Vacuum oven temperature range RT+10 °C ~ +250 °C, capacities ranging from 20 liters to 210 liters.

Optional Accessories

  • Vacuum pump 2XZ-2
  • Inert gas port
  • Minimum heating time 50% less than traditional vacuum oven
  • Especially for drying powder and pallet materials
  • The outer shell is made of high-quality steel plate, the surface paint spraying;The working chamber is made of anti-corrosion stainless steel 304.
  • Intelligent temperature controller is based on microprocessor with PID parameters controlling function.Digital temperature display with the functions of precise temperature control, and over-temperature alarm.
  • Double layer toughened and bulletproof glass door,larger transparent viewing window to see the samples.
  • The air-tightness of the chamber door is adjustable,with a wholly shaped silicone rubber door sealing loop which can ensure the high vacuum degree in chamber.
  • The heating power can be adjusted which can ensure the low temperature has no overshoot.

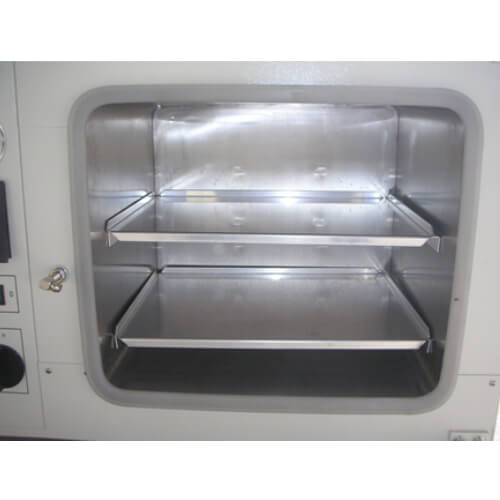

  • Designed for drying gently with its homogeneous temperature distribution.Each shelf and chamber ensures optimal heat transfer and minimal spatial temperature variation.
  • Available in various technical specifications and capacities.We can customize oven as per customer requirement like size of chamber, temperature range,supply voltage,material of chamber,etc.

Model

JYZF-6020

JYZF-6030

JYZF-6050

JYZF-6090

JYZF-6210

Consumed Power

300W

400W

1400W

1200W

2160W

Capacity

20L

30L

50L

90L

210L

Internal Size(W*D*H,MM)

300*300*275

320*320*300

415*370*345

450*450*450

560*590*640

Outer Size(W*D*H,MM)

580*420*450

610*455*485

710*520*535

615*605*1245

725*735*1435

Packing Size(W*D*H,MM)

650*575*550

675*580*570

780*645*705

720*720*1415

855x825x1655

Gross Weight

45KGS

47KGS

78KGS

175KGS

275KGS

Shelves

For JYZF-6020,6030 1PCS;For JYZF-6050,6090 2 PCS;For JYZF-6210 3PCS

Material of Studio

Stainless steel 304

Vacuum Degree

<133Pa

Supply Voltage

220V 50/60HZ

Temperature Range

For JYZF-6020,6030 RT+10 °C ~ +200 °C

For JYZF-6050,6090,6210 RT+10 °C ~ +250 °C

Temperature Fluctuation

± 1°C

Temperature Control Precision

0.1°C

Atmosphere

Internal heating

Remark

Standard configuration for JYZF-6020,6030,6050 is not with vacuum pump,with options vacuum pump-2XZ-2;Standard configuration for JYZF-6090 and 6210 is with vacuum pump-2XZ-4
