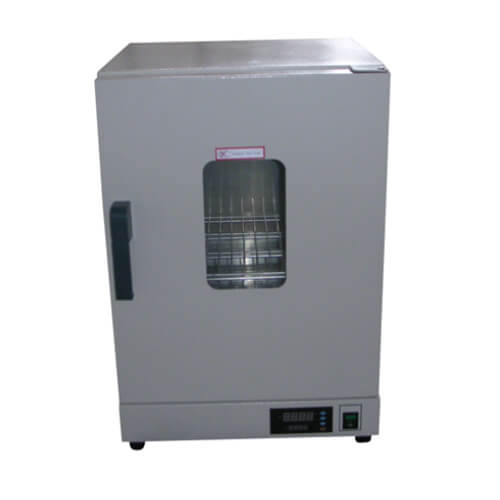

300C Natural Convection Ovens

300C Natural Convection Ovens 2017-04-13T09:57:48+00:00

Project Description

300C Natural Convection Oven temperature range RT+15°C ~ +300 °C,drying or tempering electronic components,material tests,torrefaction……

Description

300C Natural Convection Ovens are used for a variety of applications like drying or tempering electronic components,material tests,torrefaction, wax-melting ,high temperature aging ,preheating various materials or specimen and sterilization in industrial and mining enterprises, laboratories and scientific research institutes.

300C Natural Convection Oven temperature range RT+15°C ~ +300 °C, capacities ranging from 30 liters to 240 liters.

Optional Accessories

  • 30 Steps Programmable temperature controller
  • Temperature record printer
  • RS485 port and communication
  • The outer shell is made of high-quality steel plate, the surface paint spraying;The working chamber is made of anti-corrosion stainless steel 304.
  • Intelligent temperature controller is based on microprocessor with PID parameters controlling function.Digital temperature display with the functions of precise temperature control, timing range 0~9999min and over-temperature alarm.
  • The shelves can be equipped more according to customers’ requirements and the space between shelves can be adjusted.
  • Double layer glass door,larger transparent viewing window to see the samples.
  • Vertical natural convection.The heating power can be adjusted.

Model

JYNG-9037A

JYNG-9077A

JYNG-9147A

JYNG-9247A

Consumed Power

700W

1100W

1500W

1800W

Capacity

30L

70L

140L

240L

Internal Size(mm)

300*300*350

400*400*450

450*550*550

500*600*750

Outer Size(mm)

455*465*700

552*565*790

600*705*900

650*755*1100

Packing Size(mm)

630*535*800

635*730*975

685*850*1065

730*900*1265

Gross Weight

45KGS

67KGS

75KGS

93KGS

Shelves

2 PCS

Material of Studio

Stainless steel 304

Supply Voltage

220V 50/60HZ

Temperature  Range

RT+15 °C…+300 °C

Timing Range

0~9999min

Temperature Fluctuation

±1°C

Temperature control Precision

0.1°C
