Auto Nitrogen Cabinet is mainly used for storing materials which are sensitive to humidity,CE certified……

Description

Auto Nitrogen Cabinet 1%~60%RH is mainly used for storing materials which are sensitive to humidity,such as optical and electronic components,printed circuit boards, optical film and lens, LED,PCB board, crystal, SCR,IC, BGA and other sophisticated electronic devices.

Nitrogen cabinet capacities ranging from 98liters to 1436 liters.

Reference humidity for various articles storage

Humidity RH%

Stored Items

55%~45%RH

Tape, CD, camera,lens,microscope, video machine, telescope, photographs, negative, slide, miniature sheet, tapes, ancient book album, oil painting, stamps, coins, antique, CDS, LD, engineering drawing, leather goods, industrial design

45%~35%RH

Precision instruments, electronic appliance, measuring tools, precision grinding tool, half guide slide, capacitors, tungsten, EI, batteries, optical coating namely components, crystal, light source, printed circuit board, detector, charger, precision bearing, optical lens

35%~20%RH

Various reagent, samples, filter, standard products, seeds, pollen, dry flower and spices, tea product, coffee, dessert, fluorescent powder, general PCB board,wafer, short time deposit of the original device of electron

20%~10%RH

Electronic components,chemicals,LED,PCB board, crystal, SCR, and other sophisticated electronic devices

10%~1%RH

IC, BGA,SMT, copper, silver, silver plating components

Detailed pictures

Control panel

Control panel

Castors

door lock

Door lock

Nitrogen Flow meter

Nitrogen Flow meter

  • Chamber adopts High grade 1mm and 1.2mm cold rolled steel plate, reinforced structure design,excellent load-bearing and sealing performance.
  • LED Digital display panels, using US import Honeywell humidity sensor; temperature and humidity independent display. Humidity can be set and has a memory function, power failure no longer set.
  • Surface treatment with Dupont orange line baking varnish which is strong corrosion resistance to avoid the stored goods from pollution,static shock, and oxidation..
  • 3.2mm high intensity toughened glass.
  • Zinc alloy lock with air tightness,with anti-theft function.
  • Install ESD casters with brakes for easy move and ESD stand.
  • Power supply: AC power 85V~265V 50/60Hz
  • With two types black surface (anti-static type) or White surface(nonanti-static type)
  • Equipped with the nitrogen gas input connection and nitrogen flowmeter, the system will automatically cut off the nitrogen supply when humidity in the cabinet achieves the setting value. When more than the setting value, the system will automatically open nitrogen supply. Compared to other Nitrogen cabinets, it can save 70% nitrogen consumption.

Model

Capacity



Inner size

(MM)

Outer size

(MM)

Packing size

(MM)

G.W

(KG)

Average power

(W)

Shelves

Anti-ESD

(Y/N)

JYN98D

98L

446*372*598

448*400*688

540*480*760

32

8

1PCS

N

JYN98FD

98L

446*372*598

448*400*688

540*480*760

32

8

1PCS

Y

JYN160D

160L

446*422*848

448*450*1010

540*540*1215

47.5

8

3PCS

N

JYN160FD

160L

446*422*848

448*450*1010

540*540*1215

47.5

8

3PCS

Y

JYN240D

240L

596*372*1148

598*400*1310

690*490*1500

63

8

3PCS

N

JYN240FD

240L

596*372*1148

598*400*1310

690*490*1500

63

8

3PCS

Y

JYN320D

320L

898*422*848

900*450*1010

990*550*1270

79

8

3PCS

N

JYN320FD

320L

898*422*848

900*450*1010

990*550*1270

79

8

3PCS

Y

JYN435D

435L

898*572*848

900*600*1010

990*690*1260

95

8

3PCS

N

JYN435FD

435L

898*572*848

900*600*1010

990*690*1260

95

8

3PCS

Y

JYN540D

540L

596*682*1298

598*710*1465

690*800*1710

100

8

3PCS

N

JYN540FD

540L

596*682*1298

598*710*1465

690*800*1710

100

8

3PCS

Y

JYN718D

718L

596*682*1723

598*710*1910

690*800*2200

128

8

5PCS

N

JYN718FD

718L

596*682*1723

598*710*1910

690*800*2200

128

8

5PCS

Y

JYN870D

870L

898*572*1698

900*600*1890

1000*700*2200

160

8

5PCS

N

JYN870FD

870L

898*572*1698

900*600*1890

1000*700*2200

160

8

5PCS

Y

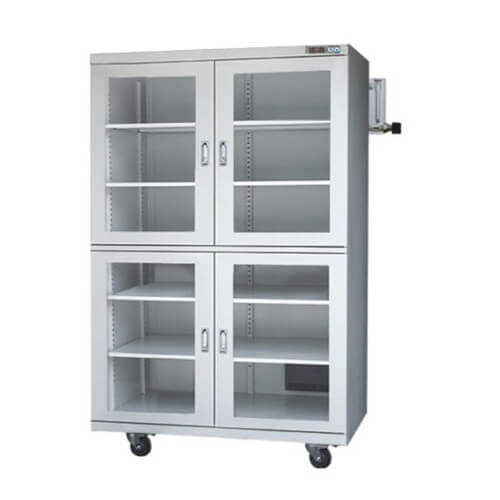

JYN1436D-4

1436L

1198*682*1723

1200*710*1910

1300*800*2230

219

8

5PCS

N

JYN1436FD-4

1436L

1198*682*1723

1200*710*1910

1300*800*2230

219

8

5PCS

Y

JYN1436D-6

1436L

1198*682*1723

1200*710*1910

1300*800*2230

219

8

5PCS

N

JYD1436FD-6

1436L

1198*682*1723

1200*710*1910

1300*800*2230

219

8

5PCS

Y
