Project Description



High low temperature heat damp alternating climatic chamber is certified by CE……

Description

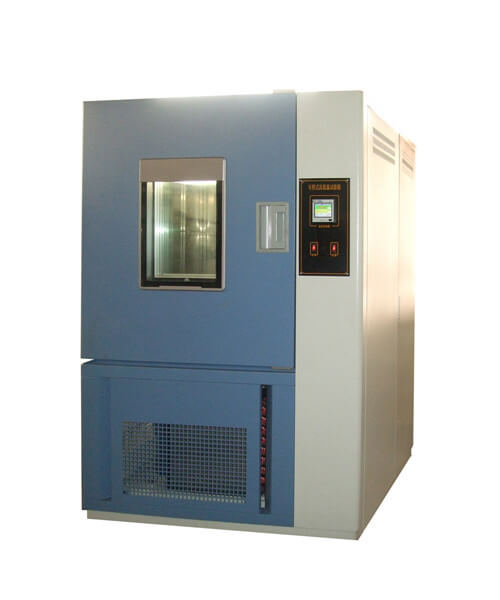

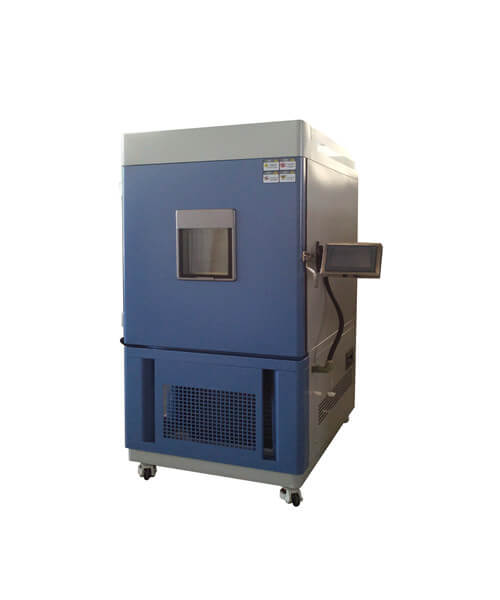

High low temperature alternating damp heat climatic chamber is mainly for testing and determining the parameters and performance of electrical, electronic products and materials upon the change of the environment in high-temperature, low-temperature and temperature humidity alternating test.It is appropriate for testing material performance, such as resist heat, resist dry and resist cold.

High and Low Temperature Humidity Chamber capacities ranging from 50 to 1000 liters to accommodate many product sizes. Temperature Range: -70°C to +150°C.Humidity range:10% to 98% RH.We also provide custom temperature humidity chambers to meet individual size and performance needs.

Application

  • Electronic parts
  • Home appliance
  • Auto parts
  • Telecommunications
  • Aerospace industry
  • LED lights
  • Packagings
  • Pharmaceuticals
  • PV industry

Safety device

  • leakage and outage protection
  • compressor over-pressure,overheat,over-current protection
  • overload fusing protection
  • audio signal alarm

Control range

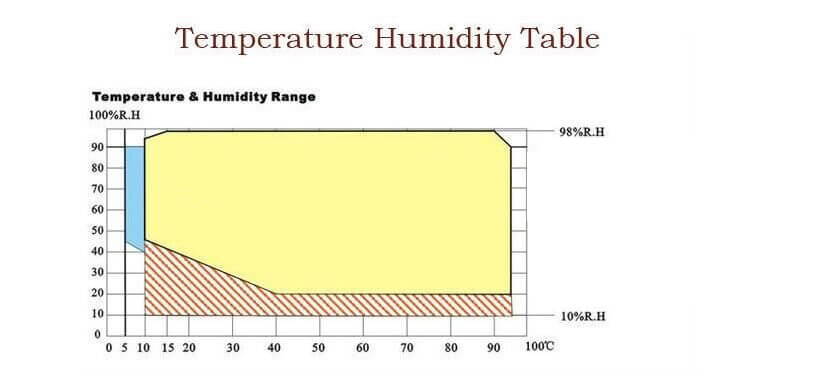

temperature humidity range

Detailed pictures

TEMI 880 LCD Controller

TEMI 880 LCD Controller

France compressor

France TECUMSEH compressor

temperature humidity sensor

Temperature humidity sensor

water position

Water position

  • Working chamber corrosion resistance SUS#304 stainless steel material
  • Input mode PT100 Temperature sensor
  • Humidity sensor dry and wet bulb sensor
  • 5.7 inch TEMI880 LCD controller,program with 99 groups,999 cycles
  • RS232 computer interface and software
  • France “Tecumseh” compressor or Hermetic Refrigeratio compressors
  • Environment friendly Refrigerant R404A & R23
  • Steam humidifying,automatic water circulation loop,with functions of automatic filling water
  • Alternating between high temperature and low temperature,high humidity and low humidity back and forth.
  • Air circulation for uniform airflow within the inner chamber,low noise fans
  • Door seal adopts silicone rubber material which can avoid aging and hardening in high low temperature conditions.
  • 50mm diameter cable port comes standard on the left side of the chamber

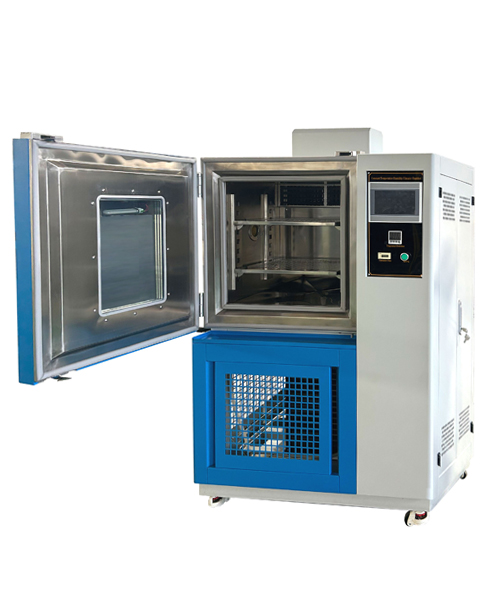

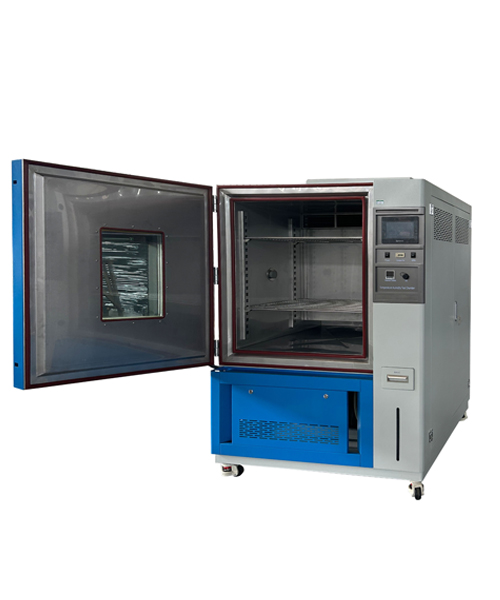

  • With larger transparent viewing window and lighting inside to observe the test
  • Energy efficient, long life span Philip lighting
  • Casters for easy moving during installation or relocation
  • Adjustable shelves
ModelJYGDJS-50JYGDJS-100JYGDJS-150JYGDJS-250
Internal Size W*D*H (mm)350×320×450500×400×500500×500×600600×500×810
External size W*D*H(mm)950×950×14001050×1030×17501050×1100×18501120×1100×2010
ModelJYGDJS-500JYGDJS-800JYGDJS-1000
Internal Size W*D*H (mm)800×700×9001000×800×10001000×1000×1000
External size W*D*H(mm)1350×1300×22001560×1410×22401560×1610×2240
Temp.rangeModel A :-20°C~+150°C    Model B: -40°C~+150°C    Model C: -70°C~+150°C
Humidity Range20% ~ 98% R.H(even lower 10% is available)
Humidity bias+2/-3% R.H
Temp. fluctuation≤±0.5°C
Temp. uniformity≤2°C
Heating rate2~3°C/min
Cooling rate0.7~1°C/min
Timing1S~9999H
Power SupplyAC220V·50HZ/380V·50HZ
HeaterNickel wire heater
CoolerCopper tube aluminum fin cooler
External materialA3 steel plate,surface electrostatic spraying
Insulation materialsSuperfine fiberglass wool / polyurethane foam
Water supplyElectronic device controller automatic control of liquid, with water shortage alarm function
Humidification modeShallow slot humidification, electric heating steam humidification mode
Dehumidification modeRefrigeration dehumidification mode
Circulatory systemTemperature low-noise motors, single cycle, plus the long axis, stainless steel multi-leaf type centrifuge fan
RefrigerationUnit cooling mode / Dual cooling method (air-cooled),according to size of chamber and specific low temperature
Standard ConfigurationOne observe window(Resistant to high and low temperatures hollow toughened glass window, a fluorescent lamp, two layer stainless steel shelves
  • 7.5 inch TEMI2700 TFT-LCD Touch Screen Programmable controller,programs with 120 patterns,max 1200 segments,max 999Hour 59Min 59Sec can be set
  • Ethernet interface
  • SD Memory Card support
  • Remote control and remote monitoring possible via intranet or internet
  • Additional 50mm or 100mm diameter cable ports
  • Germany “Bitzer” refrigeration compressor
  • Additional shelves

TEMI 2700 Picture

TEMI 2700 contoller
