Project Description

Constant temperature humidity climatic chamber JYHS is very popular for electronics relibility tesint,CE certified……

Description

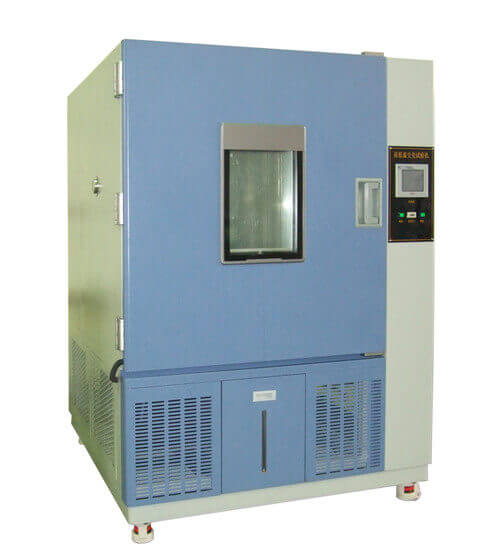

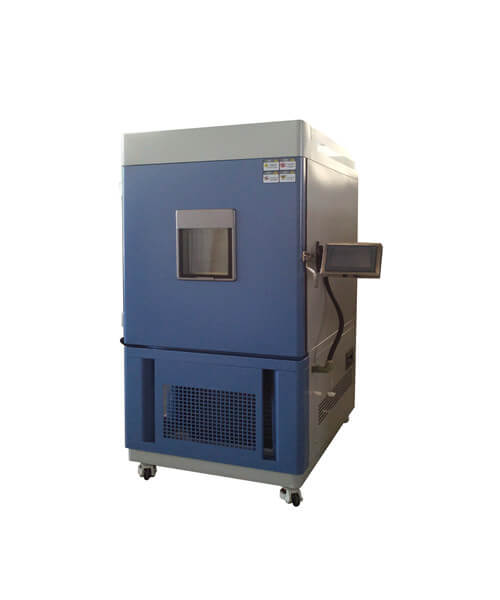

Constant temperature humidity climatic chamber is mainly for testing and determining the parameters and performance of electrical, electronic products and materials upon the change of the environment in high-temperature, low-temperature or temperature humidity test.It is appropriate for testing material performance, such as resist heat, resist dry and resist cold.

Constant Temperature Humidity Chamber capacities ranging from 50 to 1000 liters to accommodate many product sizes. Temperature Range: 0°C to +100°C.Humidity range: 20% to 98% RH.We also provide custom temperature humidity chambers to meet individual size and performance needs.

Application

  • Electronic parts
  • Home appliance
  • Auto parts
  • Telecommunications
  • Aerospace industry
  • LED lights
  • Packagings
  • Pharmaceuticals
  • PV industry

Safety device

  • leakage and outage protection
  • over-temperature protection
  • water shortage protection

Control range

temperature humidity range

Detailed pictures

TEMI 880 LCD controller

TEMI 880 LCD Controller

France compressor

France TECUMSEH compressor

temperature humidity sensor

Temperature humidity sensor

water tank

Water tank

  • Working chamber corrosion resistance SUS#304 stainless steel material
  • Input mode PT100 Temperature sensor
  • Humidity sensor dry and wet bulb sensor
  • 5.7 inch TEMI880 LCD controller,program with 99 groups,999 cycles
  • RS232 computer interface and software
  • France “Tecumseh” compressor or Hermetic Refrigeration compressors
  • Environment friendly Refrigerant R404A & R23
  • Steam humidifying,automatic water circulation loop,with functions of automatic filling water
  • Air circulation for uniform airflow within the inner chamber.low noise fans
  • Door seal adopts silicone rubber material which can avoid aging and hardening in high low temperature conditions.
  • 50mm diameter cable port comes standard on the left side of the chamber
  • With larger transparent viewing window and lighting inside to observe the test
  • Energy efficient, long life span Philip lighting
  • Casters for easy moving during installation or relocation
  • Adjustable shelves

Model

JYHS-50

JYHS-100

JYHS-150

JYHS-250

Internal Size W*D*H (mm)

350×320×450

500×400×500

500×500×600

600×500×810

External size W*D*H(mm)

950×950×1400

1050×1030×1750

1050×1100×1850

1120×1100×2010

Model

JYHS-500

JYHS-800

JYHS-1000



Internal Size W*D*H (mm)

800×700×900

1000×800×1000

1000×1000×1000



External size W*D*H(mm)

1350×1300×2200

1560×1410×2240

1560×1610×2240



Temp.range

0°C~+100°C

Humidity Range

20% ~ 98% R.H(even lower 10% is available)

Humidity bias

+2/-3% R.H

Temp. fluctuation

≤±0.5°C

Temp. uniformity

≤2°C

Timing

1S~9999H

Power Supply

AC220V·50HZ/380V·50HZ

Heater

Nickel wire heater

Cooler

Copper tube aluminum fin cooler

External material

A3 steel plate,surface electrostatic spraying

Insulation materials

Superfine fiberglass wool / polyurethane foam

Water supply

Electronic device controller automatic control of liquid, with water shortage alarm function

Humidification mode

Shallow slot humidification, electric heating steam humidification mode

Dehumidification mode

Refrigeration dehumidification mode

Circulatory system

Temperature low-noise motors, single cycle, plus the long axis, stainless steel multi-leaf type centrifuge fan

Refrigeration

Unit cooling mode / Dual cooling method (air-cooled),according to size of chamber and specific low temperature

Standard Configuration

One observe window(Resistant to high and low temperatures hollow toughened glass window, a fluorescent lamp, two layer stainless steel shelves

  • 7.5 inch TEMI2700 TFT-LCD Touch Screen Programmable controller,programs with 120 patterns,max 1200 segments,max 999Hour 59Min 59Sec can be set
  • Ethernet interface
  • SD Memory Card support
  • Remote control and remote monitoring possible via intranet or internet
  • Additional 50mm or 100mm diameter cable ports
  • Germany “Bitzer” refrigeration compressor
  • Additional shelves

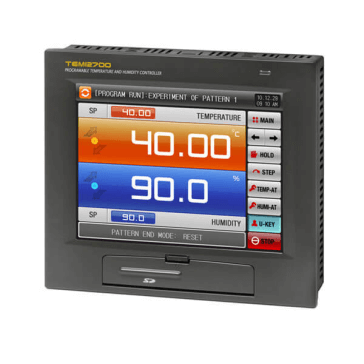

TEMI2700 Pictures

TEMI 2700 contoller
