Project Description

2017 hot-sale climatic chambers JYGDW series,with CE certification……

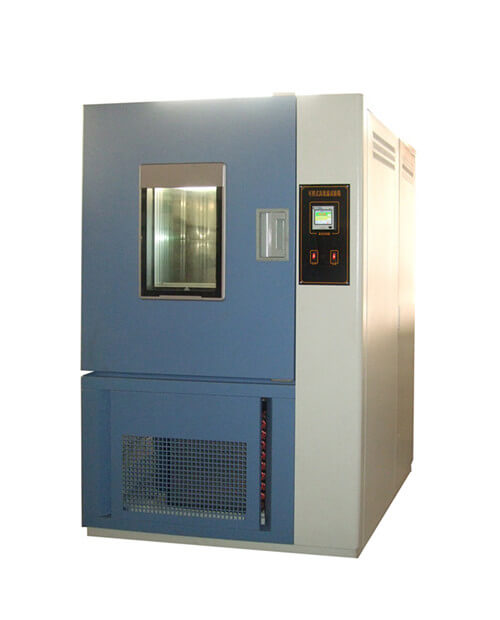

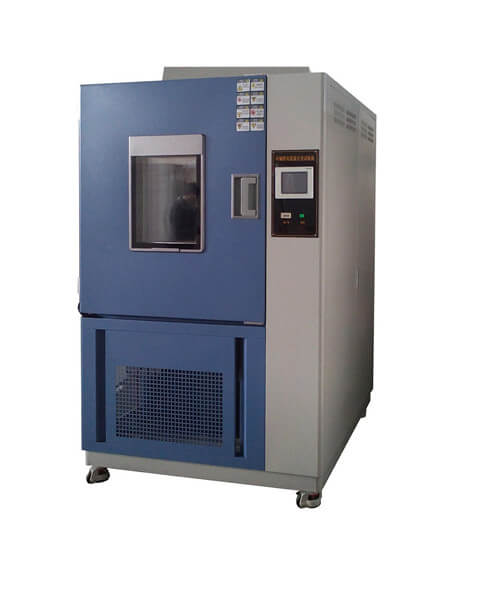

Description

High Low Temperature Climatic Chamber is mainly for testing and determining the parameters and performance of electrical, electronic products and materials upon the change of the environment in high-temperature, low-temperature or constant test.It is appropriate for testing material performance, such as resist heat, resist dry and resist cold.

High Low Temperature Climatic Chamber capacities ranging from 50 to 1000 liters to accommodate many product sizes. Temperature Range: -70°C to +150°C.We also provide custom temperature chambers to meet individual size and performance needs.

Application

  • Electronic parts
  • Home appliance
  • Auto parts
  • Telecommunications
  • Aerospace industry
  • LED lights

Detail pictures

Japan Fuji Controller

Japan Fuji Controller

Safety Device

Safety Device

Cable Port

Cable Port

France Tecumseh Compressor

France Tecumseh Compressor



  • Working chamber corrosion resistance SUS#304 stainless steel material
  • Input mode PT100 Temperature sensor
  • Japan “Fuji” controller, with automatic calculation of PID function
  • France “Tecumseh” compressor or compressors
  • Environment friendly Refrigerant R404A & R23
  • Air circulation for uniform airflow within the inner chamber.low noise fans
  • Door seal adopts silicone rubber material which can avoid aging and hardening in high low temperature conditions.
  • 50mm diameter cable port comes standard on the left side of the chamber
  • With larger transparent viewing window and lighting inside to observe the test
  • Energy efficient, long life span Philip lighting
  • Casters for easy moving during installation or relocation
  • Adjustable shelves
ModelJYGDW-50JYGDW-100JYGDW-150JYGDW-250
Internal Size W*D*H (mm)350×320×450500×400×500500×500×600600×500×810
External size W*D*H(mm)950×950×14001050×1030×17501050×1100×18501120×1100×2010
ModelJYGDW-500JYGDW-800JYGDW-1000
Internal Size W*D*H (mm)800×700×9001000×800×10001000×1000×1000
External size W*D*H(mm)1350×1300×22001560×1410×22401560×1610×2240
Temp.rangeModel A :-20°C~+150°C    Model B: -40°C~+150°C    Model C: -70°C~+150°C
Temp. fluctuation≤±0.5°C
Temp. uniformity≤2°C
Heating rate2~3°C/min
Cooling rate0.7~1°C/min
Timing1S~9999H
Power SupplyAC220V·50HZ/380V·50HZ
HeaterNickel wire heater
External materialA3 steel plate,surface electrostatic spraying
Insulation materialsSuperfine fiberglass wool / polyurethane foam
Circulatory systemTemperature low-noise motors, single cycle, plus the long axis, stainless steel multi-leaf type centrifuge fan
RefrigerationUnit cooling mode / Dual cooling method (air-cooled),according to size of chamber and specific low temperature
Standard ConfigurationOne observe window(Resistant to high and low temperatures hollow toughened glass window, a fluorescent lamp, two layer stainless steel shelves
  • TEMI-880/TEMI2700 Touch Screen Programmable controller
  • USB and LAN interface
  • Remote control and remote monitoring possible via Internet
  • RS 232 computer interface and software
  • Additional 50mm or 100mm diameter cable ports
  • Germany “Bitzer” refrigeration compressor
  • Additional shelves

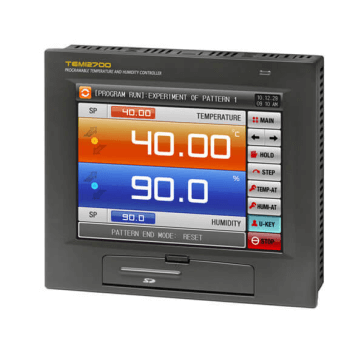

TEMI2700 Picture

TEMI 2700 contoller
